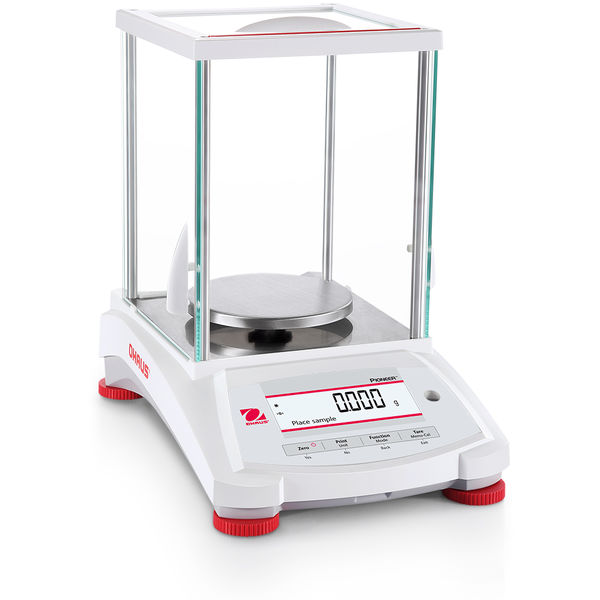

Precision Balance PX623

logo

ERP
OHS-30699092
CA$3,076.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.

Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation

Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)

Operation
AC adapter (included)

Communication
RS232 and USB device (included); GLP/GMP data output with real-time clock

Construction
Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

Maximum Capacity 620 g
Readability 0.001 g
Pan Size 120 mm
Internal Calibration InCal™ - Semi Automatic
Draftshield Included
Auto Door Not Applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication USB;  RS232
Dimensions 321 mm x 209 mm (LxW)
Display 2-Line LCD with Backlight
In-Use Cover Included
Legal for Trade Not Applicable
Linearity ± 0.002 g
Minimum Weight (USP, 0.1%, typical) 2 g
Net Weight 10 lb (4.5 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.001 g
Stabilization Time 2 s
Tare Range To capacity by subtraction
Units of Measurement Singapore Tael;  Ounce Troy;  Pennyweight;  Grain;  Kilogram;  Tical;  Custom;  Milligram;  Momme;  Newton;  Baht;  Taiwan Tael;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Carat;  Ounce
Working Environment operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing (operability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing)
