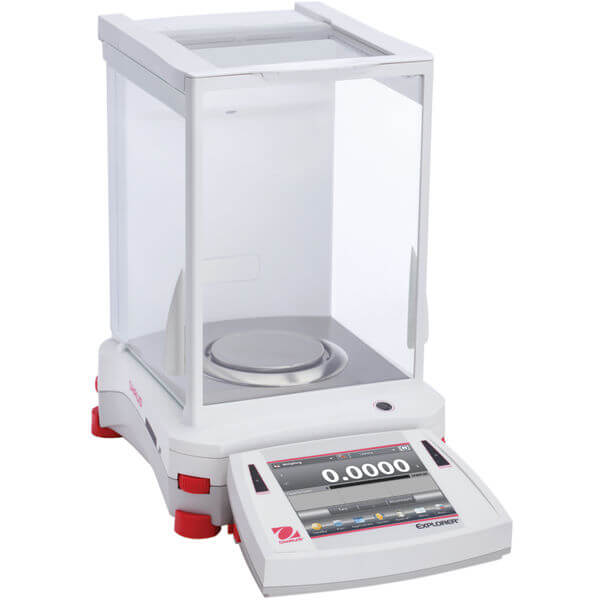

EX224 Explorer Analytical. Max capacity: 220 g Readability: 0.1 mg

logo

ERP
OHS-83021332
Regular Price CA$8,615.00 Special Price CA$7,753.50
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

The OHAUS Explorer Series of analytical balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances and all of their intelligent features simplify even the most complex laboratory measurements.

Applications

  • Weighing
  • Parts Counting
  • Percent Weighing
  • Checkweighing
  • Animal/Dynamic Weighing
  • Filling
  • Totalization/Statistics
  • Formulation
  • Differential Weighing
  • Density Determination
  • Peak Hold
  • Ingredient Costing
  • Pipette Adjustment
  • SQC

Display
5.7" (145 mm) Full-colour VGA graphic touchscreen display with user-controlled brightness

Operation
AC adapter (included)

Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately). GLP/GMP data output with real-time clock

Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door, illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover

Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages

Maximum Capacity 220 g
Readability 0.1 mg
Pan Size 3.5 in (90 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Auto Door Not Applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication RS232 (Included);  USB (Included);  Ethernet (Available as an Accessory)
Dimensions 13.8 in x 15.5 in x 9.1 in (350 mm x 393 mm x 230 mm) (HxLxW)
Display Full-colour 5.7 in VGA, touch screen
In-use cover Included
Legal for Trade Not Applicable
Linearity ± 0.0002 g
Minimum Weight (USP, 0.1%, typical) 0.16 g
Net Weight 15.2 lb (6.9 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability (typical) 0.0001 g
Stabilization Time 2 s
Tare Range To capacity by subtraction
Units of Measurement Baht;  Carat;  Custom;  Grain;  Gram;  Hong Kong Tael;  Kilogram;  Mesghal;  Milligram;  Momme;  Newton;  Ounce;  Ounce Troy;  Pennyweight;  Pound;  Singapore Tael;  Taiwan Tael;  Tical;  Tola
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
