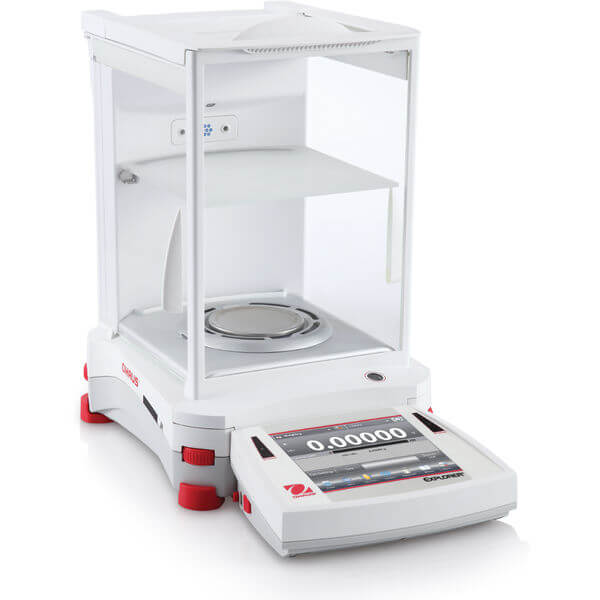

EX225D/AD Explorer Semi-Micro Balance. Max Capacity: 120 g/220 g Readability: 0.01 mg;0.1 mg

logo

ERP
OHS-30139513
Regular Price CA$13,759.00 Special Price CA$12,383.10
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

When laboratory work and research requires accuracy to the hundred-thousandth, there is simply no room for error. The Explorer series of semi-micro balances has been designed with the technology to ensure that your very specific weighing results are accurate. Sophisticated laboratories requiring accuracy and looking for innovative technology to obtain measurement results can find both in Explorer semi-micro balances.

Applications

  • Weighing
  • Percent Weighing
  • Parts Counting
  • Check Weighing
  • Dynamic/Animal Weighing
  • Filling
  • Totalization
  • Formulation
  • Differential Weighing
  • Density Determination
  • Peak Hold
  • Pipette Adjustment
  • SQC

Display
Full-colour VGA graphic display (5.7 in. diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data

Operation
AC Adapter (Included)

Communication
Easy access communication ports including 2 units of USB port and RS232 and an optional fourth port of either RS232 or Ethernet. GLP/GMP Data Ouput with Real Time Clock. Data Transfer Function.

Construction
Metal base, ABS top housing, stainless steel pan,anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic door as option models

Design Features
AutoCal™ fully-automatic internal calibration system, fast stabilization time, four touchless sensors, built-in ionizer with automatic door models, up to 14 operating languages, OIML models available, SAVE to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.

Maximum Capacity
120 g / 220 g
Readability

0.01 mg;0.1 mg

Pan Size 3.14 in (80 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication RS232 (Included);  USB (Included);  USB Host;  Ethernet (Available as an Accessory)
Dimensions 13.8 in x 15.5 in x 9.1 in (350 mm x 393 mm x 230 mm) (HxLxW)
Display Full-colour 5.7 in VGA, touch screen
In-use cover Included
Legal for Trade No
Net Weight 7 kg
Pan Construction Stainless Steel
Power AC Adapter (Included)
Stabilization Time 8 s
Units of Measurement Gram;  Kilogram;  Carat;  Grain;  Ounce;  Ounce Troy;  Pennyweight;  Momme;  Tical;  Mesghal;  Tola;  Custom
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
