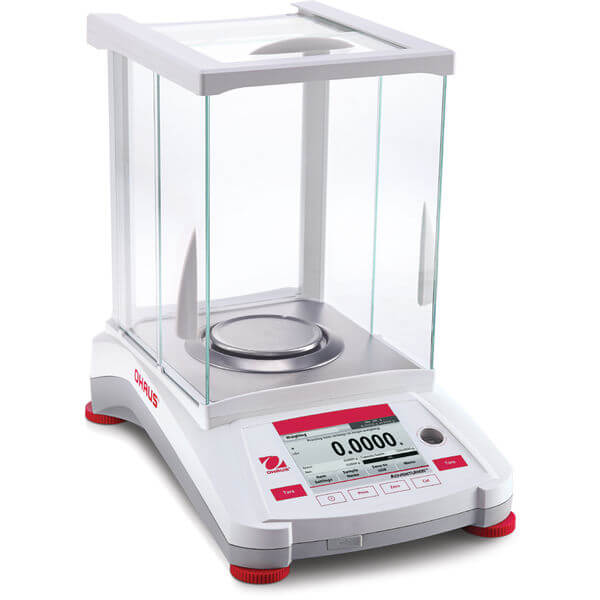

AX324 Adventurer Analytical. Max capacity: 320 g Readability: 0.1 mg

logo

ERP
OHS-30100604
Regular Price CA$6,830.00 Special Price CA$6,147.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Applications

  • Weighing
  • Parts Counting
  • Percent Weighing
  • Check Weighing
  • Animal/Dynamic Weighing
  • Totalization/Statistics
  • Formulation
  • Density Determination
  • Display Hold

Display
4.3" (109 mm) Full-colour VGA graphic touchscreen with user-controlled brightness

Operation
AC adapter (included)

Communication
RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.

Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover

Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages

Maximum Capacity 320 g
Readability 0.1 mg
Pan Size 3.5 in (90 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication RS232 (Included);  USB;  USB Host
Dimensions 13.39 in x 13.93 in x 9.05 in (340 mm x 354 mm x 230 mm) (HxLxW)
Display Full-Color 4.3 in Touchscreen WQVGA
In-use cover Included
Legal for Trade Not Applicable
Linearity ± 0.2 mg
Minimum Weight (USP, 0.1%, typical) 0.2 g
Net Weight 11.3 lb (5.1 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability (typical) 0.1 mg
Stabilization Time 3 s
Tare Range To capacity by subtraction
Units of Measurement Gram;  Milligram;  Carat;  Ounce;  Ounce Troy;  Pound;  Pennyweight;  Grain;  Newton;  Momme;  Mesghal;  Hong Kong Tael;  Singapore Tael;  Taiwan Tael;  Tical;  Tola;  Baht;  Custom
Working Environment 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
