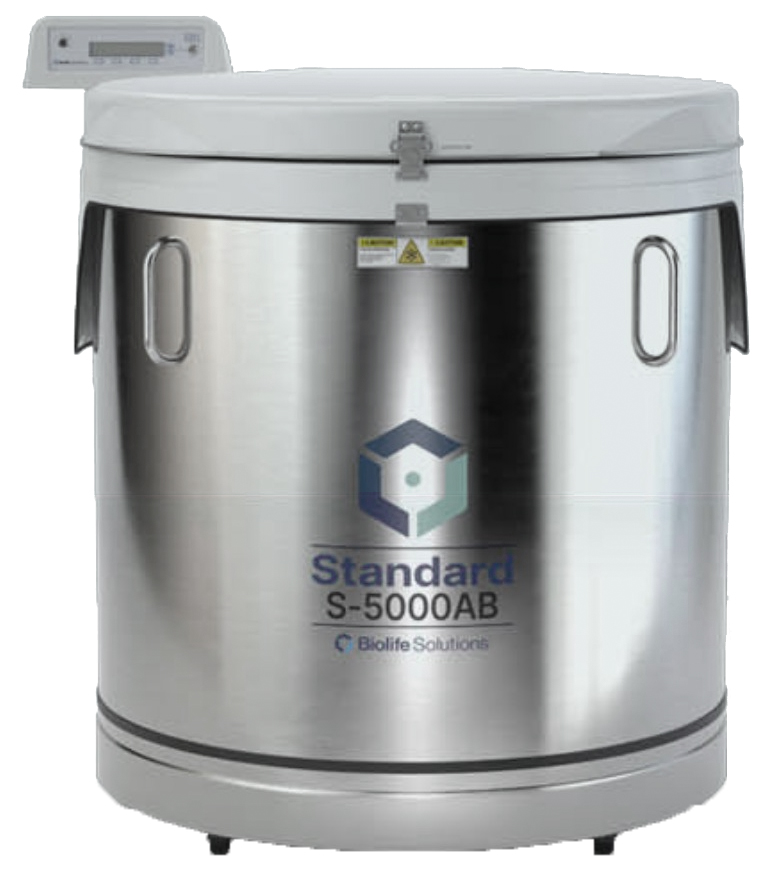

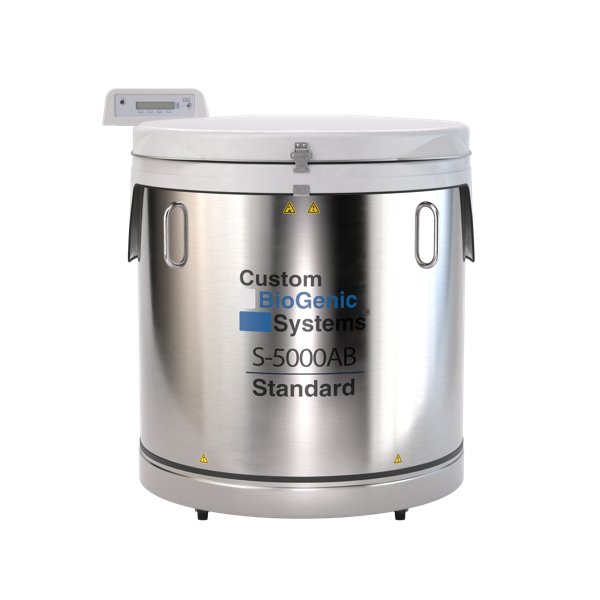

Custom BioGenic Systems S5000EH-AB Liquid Nitrogen Freezers offer conventional immersion liquid nitrogen storage. The wide lid opening provides easy, unrestricted access to samples and won't affect the temperature inside the freezer. All S series freezers use CBS's time-tested and reliable 2301 controller with a dual autofill and many additional features.
|
Performance
|
LN2 Capacity (litres): 720
|
|
Exterior Dimensions: inches (mm)
|
Width: 44 (1,117)
Depth: 52 (1,320)
Height: 55 (1,397)
|
|
Interior Dimensions: inches (mm)
|
Usable Height: 34 (863)
Usable Diameter: 40 (1,016)
|
|
Maximum Storage Capacities
|
Vials (2mL): 46,500
Blood Bags (50mL): 2,208
|
CBS's 2301 controller is time-tested, reliable and designed to keep your sample storage safe and secure.
New 16 Port Connector:
- 0-5 volt outputs provide temperature & level data for connection to existing alarm/monitor system
- 4-20 mA outputs provide temperature & level data for connection to exisitng alarm/monitor system
- Sequential and One-Fill-All-Fill input and output connection for filling systems
New two level temprature display option:
- Temp. A displays temperature at the lid, approximately 11"(27.94cm)
- Temp. B displays temperature inside the storage space, approximately 20"(50.80cm)
Additonal Features:
- Records 12 alarms & events such as fill start, fill stop, etc. with dated time stamp, printed or displayed
- Download cryomonitor data files to PC and convert them .csv files for use in Microsoft Excel
- Ethernet and auxiliary RS485 for future expansion
- Dedicated 24Vdc signal output to activate a third 24Vdc valve to control the LN2 supply
- Global Remote Alarm-Dry contact that switches during any alarm condition
- Date Log- Print or display Temp. A, Temp. B and level with date and time stamp
