DiluFlow® Elite Gravimetric dilutor 1kg douible pump. Warranty: 1 year
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details

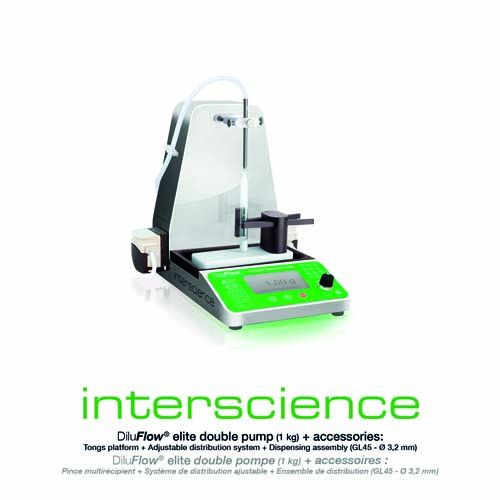

The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 1000 g. It offers the best solution to prepare your samples in the pharmaceutical and cosmetic industries, as well as animal health. Its full traceability enables the recording of all operations.
- 225 mL in 8 seconds
- Dilution factor: 1/2 to 1/1000, customizable fractions
- Dilution accuracy: > 99%*
- Max weight: 1000 g
- Max number of pumps: 2 integrated + 4 external
* in Standard or Accurate mode (in optimal conditions)
Features
For pharmaceutical and cosmetics industries
The DiluFlow Elite 1 kg is adapted to small volumes, as required in pharmaceutical and cosmetics industries. Its flexibility enables the preparation of the samples in tubes, pots...
High accuracy
The DiluFlow Elite 1 kg allows an accurate dilution of all sample types from 1 to 20 g (at 1/10th) with an accuracy of > 99%.
Connectivity and full traceability
The DiluFlow Elite is programmable through its 24 customizable programs. Traceability is ensured by a bidirectional LIMS ethernet connection. DiluFlow Elite exports the analyses data to printer, USB key, ExcelTM, Open OfficeTM, CSV and LIMS.
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Also:
- Autotare Function
- Multi-distribution mode
- Magnetic BagOpen
- Up to 6 diluents
Applications
DiluFlow Elite 1 kg is used for the preparation of samples from 1g to 20g diluted at 1/10th. It enables you to prepare tubes, or pots for samples to analyse. For example: active ingredients, cream, make-up...
Specifications
| DiluFlow Elite 1 kg (single pump) | DiluFlow Elite 1 kg (double pump) | |
| Reference | ISL-503101 | ISL-503201 |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 1000 g | |
| Max weight without support | 1500 g | |
| Weighing accuracy | 0 g to 20 g : ± 0.01 g / 20 g to 1000 g : ± 0.1% | |
| Minimum weight required for dilution | 0.5 g (with a dilution factor of 10) | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/1000, customizable fractions | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 8 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 6 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 9 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated + 4 external | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Export to ExcelTM file / CSV file Export on USB key / LIMS | |
| Exported data | Sample weight / Total weight / Dilution factor / Dilution accuracy / Diluent / Sample number / Diluent lot number / Date / Time / Last calibration date / Name of operator / Name of program | |
| Connection | 2 USB ports (type A) to connect a printer, keyboard, bar-code reader, USB key / 1 USB port (type B) to connect a printer / Jack socket to connect a foot pedal / Handy gun / Ethernet connection for LIMS | |
| Net weight | 12.9 kg | 15.2 kg |
| Dimensions (w x d x h) | 31,3 x 42,1 x 37,7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 53 cm | |
| Gross weight | 18.8 kg | 21.9 kg |
| Language | English, French | |
| Voltage - Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5x20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 - ISO 6887 | |
| Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 - Ø 3.2 mm) per pump, 1 USB key, 1 USB cable, 1 power cord, 1 BagOpen 400 for dilutor, user's manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | ||
