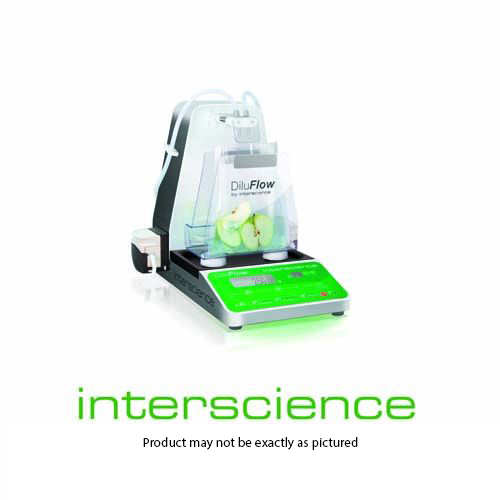

DiluFlow® Pro Gravimetric dilutor 5 kg single pump. 100-240 V~ 50/60 Hz. Warranty: 1 year
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
The DiluFlow Pro automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its robotic arm enables easy work under a laminar flow cabinet.
- 225 mL in 10 s
- Dilution factor: 1/2 to 1/99
- Dilution accuracy: > 99%*
- Max weight: 5000 g
* in Standard or Accurate mode (in optimal conditions)
Features
User-friendly and efficient
With the press of only 2 keys, the DiluFlow Pro gravimetric dilutor provides an accurate dilution of all types of samples from 10 to 375 g (at 1/10th). In compliance with ISO 7218 and ISO 6887.
Robotic arm and protective plate
The robotic arm enables you to place the sample safely in the bag without risk of cross contamination. Tested for over 1.3 million cycles, its reliability is guaranteed. The protective plate protects the beaker from contact with the sample.
Ultra-low profile
Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.
Removable drip tray
In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED
GeckoGrip holding system
This patented system replaces adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED
Traceability of results
The DiluFlow Pro exports the analysis data to the printer and to the supervision software (Export data to ExcelTM, Open OfficeTM, CSV file, printer).
LightCode
LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.
Magnetic BagOpen
The shape of the bag rack allows easy and ergonomic insertion of the bag. Its attachment by 2 magnetic points ensures a better distribution of the weight of the sample and contributes to the stability of the weighing platform.
PATENTED SHAPE
Applications
The DiluFlow Pro gravimetric dilutor is used for microbiological analyses in the food, environmental industries and public institutes researches. It is used for the preparation of samples before their quality analysis for the control of raw materials, the control of products in production and the control of the finished products.
Specifications
| DiluFlow Pro 5 kg (single pump) | DiluFlow Pro 5 kg (double pump) | |
| Reference | ISL-502105 | ISL-502205 |
| Resolution up to 200 g | 0.01 g | |
| Weighing range | 0.1 to 5000 g | |
| Max weight without support | 7000 g | |
| Weighing accuracy | 0 g to 100 g : ± 0.05 g / 100 g to 5000 g : ± 0.1% | |
| Minimum weight required for dilution | 5 g | |
| Minimum weight required for distribution | 5 g | |
| Dilution factor | 1/2 to 1/99 | |
| Dilution/distribution accuracy | > 99% in Standard or Accurate mode (in optimal conditions) | |
| Dilution time for a 25g sample diluted to 1/10 | < 9 s (with booster kit in Fast mode) | |
| Dilution time for a 375g sample diluted to 1/10 | < 80 s (with booster kit in Fast mode) | |
| Distribution time for 90 mL | < 7 s (with booster kit in Fast mode) | |
| Distribution time for 225 mL | < 10 s (with booster kit in Fast mode) | |
| Max number of pumps | 2 integrated | |
| Dilution/distribution mode | Fast / Standard / Accurate | |
| Traceability | Printer / Supervision software (export to ExcelTM/ OpenOfficeTM, CSV file, printer) | |
| Exported data | Sample weight / Total weight/ Dilution factor / Dilution accuracy / Right or left pump + with supervision software: sample number / Name of operator / Date / Time | |
| Connection | RS232 output for printer / USB port for computer / Jack output for foot pedal connection | |
| Net weight | 12.3 kg | 14.8 kg |
| Dimensions (w x d x h) | 31.3 x 42.1 x 37.7 cm | 37 x 42.1 x 37.7 cm |
| Box (w x d x h) | 55 x 55 x 40.5 cm | |
| Gross weight | 18.1 kg | 21.2 kg |
| Language | English | |
| Voltage - Frequencies | 100-240 V~ 50/60 Hz | |
| Fuses | T3.15A L 250V 5x20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |
| Warranty | 1 year | |
| In compliance with | ISO 7218 - ISO 6887 | |
| Delivered with: 1 drip tray 400, 1 or 2 pumps, 1 protection for distribution nozzle, 1 distribution assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user's manual, 1 conformity certificate / warranty card, 10 GeckoGrip, 1 pack of adhesive putty, 1 Allen wrench, blender bags samples | ||
