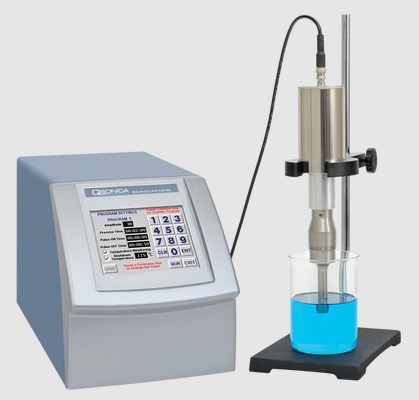

The Q700 Sonicator® is the most technologically advanced ultrasonic processor available today. Improved internal circuitry provides more efficient operation and sample-to-sample consistency, ensuring that you can obtain reliably reproducible results. The touchscreen interface enables easy programing and access to the Q700’s unmatched feature set. Full amplitude control from 1-100% better enables users to define optimum settings for efficient sample processing in challenging applications.
We turned up the power, giving the Q700 Sonicator a maximum power output of 700 watts, much more than other benchtop / laboratory-scale ultrasonic systems. This enables the Q700 to process larger volumes (up to two liters for low-viscosity liquids) or somewhat more viscous materials. With a wide range of accessories to accommodate a large variety of needs, such as continuous flow, low-volume, or multi-sample processing, the Q700 Sonicator is the most sophisticated and versatile Sonicator available today.
FULL AMPLITUDE CONTROL
Amplitude (intensity) can be controlled across the entire dynamic range, from 1-100%, giving a greater degree of resolution and the ability to pinpoint the exact amplitude needed to optimally process your sample.
PROGRAMMABILITY
Parameters including processing times, pulse on/off and amplitude can be saved to memory and run by the touch of a button.
PULSE MODE
Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
TEMPERATURE MONITORING
An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limit is reached, sonication shuts down to prevent overheating.
ROHS COMPLIANT
All Qsonica equipment is built lead free.
RUN MULTIPLE PROGRAMS IN SEQUENCE
Multiple programs can be run in sequence. For example, the unit can be programmed to sonicate at 50% amplitude for 5 minutes, shut off for 2 minutes and re-start at 25% amplitude for 10 minutes. Up to 5 programs can be run in succession.
TOTAL ENERGY OUTPUT DISPLAY
Energy delivered to the probe is displayed in both Watts and Joules.
AUTO TUNING
The Sonicator digitally tracks frequency changes in the converter / tip assembly caused by load and temperature changes and maintains electrical efficiency at all times. Manual tuning is unnecessary.
OVERLOAD PROTECTION
The unit is equipped with fault detection circuitry to shut down sonication in the event that a fault occurs.
TOUCH SCREEN CONTROL
A large, colour LCD screen clearly displays all operating parameters and options. Intuitively and quickly access any of the Sonicator’s functions with a simple touch.
