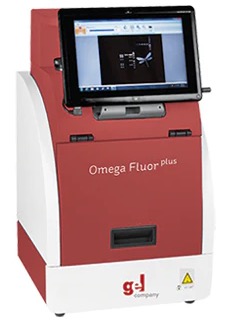

Omega Fluor(TM) Plus Gel Documentation System, 302 nm
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
Power and performance in an advanced yet compact system.
Boosted by a high resolution camera and hands free SmartCapture Technology™, the Omega Fluor Plus has everything you need for exceptional DNA and protein imaging, including the tablet! Switching between applications is a breeze with standard features such as multiple light sources and a multi-position filter wheel. Optional accessories and analysis software complete the imaging solution.
For research use only.
Features
- Hands-free SmartCapture Technology™
- No camera or focus adjustment required
- Application flexibility
- Multiple excitation sources for nucleotide and protein stains
- Absorbance for Ponceau-stained membranes or petri dishes
- Publication-quality images
- 4,096 grayscales with 5 million pixels for excellent resolution
- Universal TIFF and JPEG file formats
- Small footprint, large format
- Compact footprint fits right on your bench top
- Accommodates large format protein and nucleotide gels (i.e. PROTEAN II, Subcell 96)
Specifications
Applications - UV Imaging, White Light Imaging and Blue Light Imaging
Dye Compatibility - SYBR® Safe, SYBR family, Ethidium Bromide, Coomassie Blue, Silver Stain, AdvanStain Scarlet, SYPRO® Ruby, Oriole™ and more
Hardware - 5MP scientific grade CCD camera with a fixed lens, integrated tablet with pre-installed Image Capture Software
Software - Intuitive Omega Fluor Plus Capture Software, Optional Image Analysis Software
Excitation - Trans-UV (302 nm wavelength), Trans-white conversion scren (optional), Epi-white LEDs, Epi-blue LEDs
Emission - Orange (included), Blue, Green, Red (optional)
Dimensions (W x D x H) - 13.6 x 12.2 x 27.0 in (35.6 x 31.8 x 63.5 cm)
Imaging Area up to 24.0 x 20.0 cm
Weight - 49.0 lbs (22.2 kg)
View the brochure
