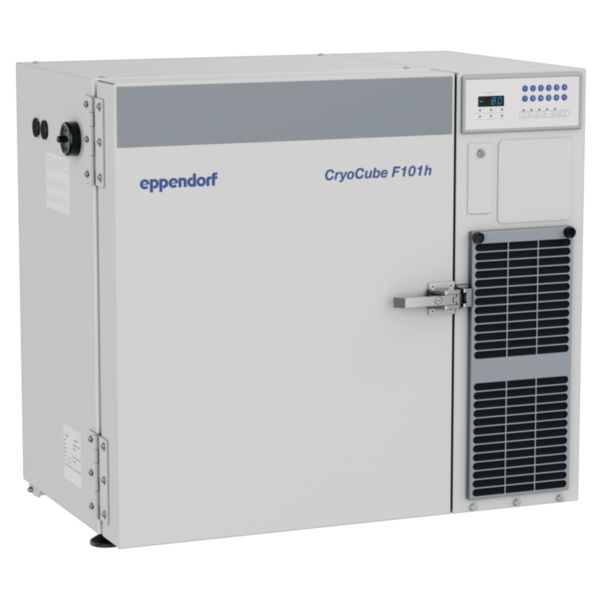

When it comes to maximizing sample storage capacity at the bench, the Eppendorf CryoCube F101h ULT freezer sets the standard: Up to 6,600 vessels below your bench in the lab with real -80 °C. By taking advantage of ultra-efficient, compact vacuum insulation panels which are used in combination with traditional PU foam insulation, we managed to slim down the freezer walls.
The Eppendorf CryoCube F101h offers a 2-compartment lay-out and two insulated inner doors for easy sample access and safe sample storage at -80 °C. The walls are 80 mm thick based on foam and vacuum insulation panels. The footprint is limited to half a square meter, especially designed for small labs. The temperature range for this -80 °C lab freezer is between -50 °C and -86 °C. The rails enable flexible positioning of the shelf, depending on your needs.
The ULT freezer has a volume of 101 L (3.6 cubic feet) and a temperature range from -50 °C to -86 °C. The CryoCube F101h is based on the freezer model:
CryoCube F101h:
- 80 mm wall (polyurethane insulation and vacuum insulation panels)
- "Green" hydrocarbon-based cooling liquids (R290/ R170)
- Air-cooling
