Eppendorf CellXpert® CS220, 224 L, CO2 incubator shaker, non-refrigerated, stackable up to 3-fold, 100 – 127 V ±10 %/50 – 60 Hz (JP/US), orbit 2.5 cm (1 in), Please order separately: platform, clamps, sticky pads, storage base or feet, water supply packag

ERP
EPP-6740111030
Loading...
Request a quote
Add to Wish List Add to Compare

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Do you want to accelerate your research while minimizing the risk of costly delays for your mammalian suspension cultures? Discover the only CO2 incubator shaker in the market with an integrated 180°C sterilization and an outstanding capacity-to-footprint ratio. Learn more about the cost- and time-saving features that will help your team remain focused on the tasks critical to your success.

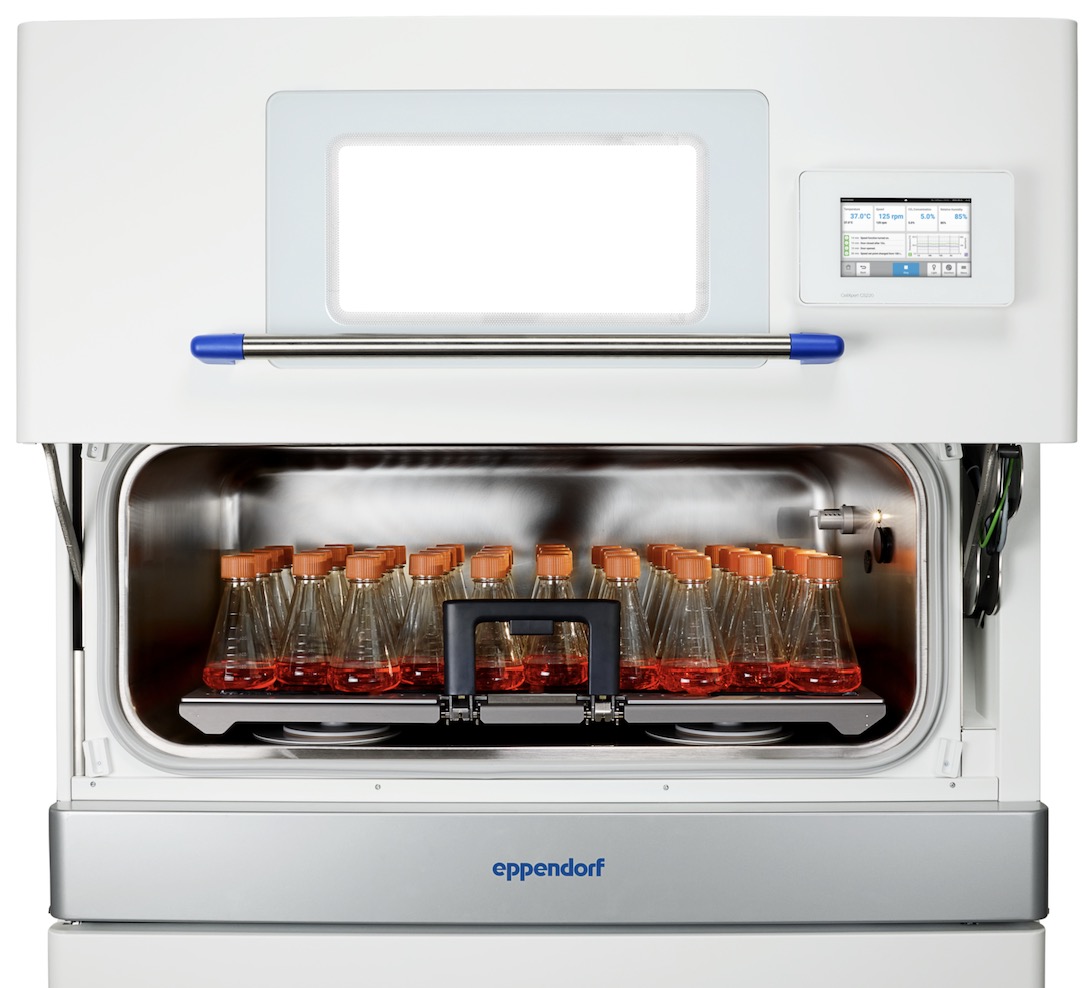

Accelerate your growth – CellXpert® CS220 CO2 incubator shaker

The CellXpert CS220 is a large capacity, stackable CO2 incubator shaker that was designed to accelerate mammalian suspension culture research projects. It also minimizes the risk of costly project delays by being the first CO2 incubator shaker in the market that brings the high contamination prevention standards of CO2 incubator-based cell culture to the shaker world. Discover many cost- and time-saving features below that will help your team to focus on other success-critical tasks.

  • Up to 40 % higher flask capacity: e.g., 8 x 5 L Corning®/Thomson Optimum Growth®, 25 x 1 L / 42 x 500 mL / 102 x 125 mL Erlenmeyer flasks (on sticky pad)
  • 180°C sterilization routine integrated: incl. wizard and downloadable performance protocol; no locally restricted UV-airflow/surface-disinfection
  • Stainless steel chamber: Hygienic design according to EN ISO 14159:2008 standard plus only few internal parts and no drive wheel, crevices, cover sheets, cables, or heating fins inside
  • Optimized throughput per lab space: Highest platform size vs. footprint ratio in the market, stackable up to 3-fold
  • Save costs: Always included: slide-out platform, rH-control, touch interface, access port, sterilization routine; no UV-lamps that require frequent exchange; low gas and energy consumption
  • Eppendorf X-drive: Proven and tested shaker drive with four weight-supporting shafts for 24/7 vibration-free shaking
  • Glide-up door and slide-out platform: Saves space and ensures fast and easy experiment setup, cleaning and service – even at the back of the chamber
  • Full control and fast root-cause analysis: 7” touchscreen shows all setpoints and current parameters at a glance; direct visual overview of logged data/events incl. door openings and alarms, user management
  • Accessories & options: Storage base and feet, various service options incl. IQ/OQ-GxP-service, VisioNize® Lab Suite remove monitoring and more
Specifications CellXpert® CS220 – 2.5 cm/1 in orbit CellXpert® CS220 – 5.1 cm/2 in orbit
Capacity 224 L (7.9 ft³)  224 L (7.9 ft³)
Power supply 100 – 127 V ±10 %, 50 – 60 Hz  100 – 120/208 – 240 V ±10 %, 50 – 60 Hz
Dimensions (W × D × H) 131.8 × 80.5 × 66.1 cm / 51.9 × 31.7 × 26.5 in  131.8 × 80.5 × 66.1 cm / 51.9 × 31.7 × 26.5 in
Product weight 240 kg / 529 lb  240 kg / 529 lb
High temperature disinfection (HTD) 180°C  180°C
Sealed inner glass doors no  no
Segmented door options –  –
Temperature control increment 0.1°C 0.1°C
Temperature stability at 37 °C (à une température ambiante de 22 °C) ±0,1 °C (à une température ambiante de 22°C) ±0,1°C
Temperature range Ambient +8°C to 60°C  Ambient +8°C to 60°C
Audible and visual alarms yes  yes
Temperature uniformity ±0.3°C at 37°C   ±0.3°C at 37°C
CO2 range 0.1% – 20% 0.1 % – 20%
CO2 control increment 0.1% 0.1%
CO2 stability at 5 % CO2 ±0.1% ±0.1%
Drive mechanism Eppendorf X-Drive  Eppendorf X-Drive
CO2 uniformity ±0.1% ±0.1%
Number of shelves (standard/max) –  –
Data export interface USB, Ethernet, VisioNize®  USB, Ethernet, VisioNize®
Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) F, S (×3)  F, S (×3)
Access port 1  1
On-board data logging yes  yes
BMS relay yes  yes
Platform size (cm/in) 51.4 × 93 cm (20.2 × 36.6 in)  51.4 × 93 cm (20.2 × 36.6 in)
Refrigerated no  no
Slide-out platform yes  yes
Door opening glide up  glide up
Speed range 20 – 300 rpm with 2.54 cm (1 in) orbit, 20 – 250 rpm with 5.1 cm (2 in) orbit  20 – 300 rpm with 2.54 cm (1 in) orbit, 20 – 250 rpm with 5.1 cm (2 in) orbit
Capacity extra large  extra large
CO2 accuracy ±0.3% at 5% CO2 ±0.3% at 5% CO2
CO2 sensor type NDIR  NDIR
Relative humidity range Up to 85% Up to 85%
Relative humidity sensor type bidirectional control  bidirectional control
Relative humidity accuracy ±5% ±5%
Relative humidity sensor type Capacitive sensor  Capacitive sensor
Relative humidity control increment 1% 1%
Relative humidity stability ±2% ±2%
Remote Device Monitoring and Notifications (VisioNize®) VisioNize® touch enabled  VisioNize® touch enabled
Temperature range 8°C above ambient to 60°C  8°C above ambient to 60°C
Temperature accuracy ±0.4°C at 37°C  ±0.4°C at 37°C

Agitation
Orbit 2.5 cm (1 in)  5.1 cm (2 in)
Speed 20 – 300 rpm  20 – 250 rpm
Control increments 1 rpm  1 rpm
Control accuracy ±1 rpm  ±1 rpm
