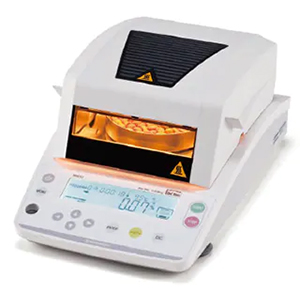

MOC63u Moisture Balance
Whether undertaking research and development or quality control analysis, the MOC63u moisture balance, with its intuitive operation and quick, accurate determination of moisture content, increases work efficiency.
Shimadzu’s precise one-piece UniBloc weighing technology and a variety of measurement programs make the MOC63u moisture balance the choice for a wide range of applications in such industries as foods, pharmaceuticals, cosmetics, chemicals, and minerals.
The MOC63u moisture balance has a maximum weight capacity of 60g.
Simple, Intuitive Operation
By simply selecting the automatic start mode, placing the sample in the pan, and closing the lid, measurements can be started.
Precise, Uniform Heating
The spacious 95 mm diameter pan, which allows even large samples to be spread thinly, the high output halogen heater, and the ingenious reflector plate combine to enable precise, uniform heating.
Five Preset Measurement Programs
Five preset measurements programs are included and easily modified: automated ending mode, timed ending mode, rapid drying mode, slow drying mode, and step drying mode.
Wide Range of Applications Covered
The above features of the MOC63u moisture balance support moisture content determination for a wide variety of applications in the food, pharmaceutical, cosmetic, chemical, and mineral fields.
Specifications
| Maximum capacity | 60 g |
|---|---|
| Minimum capacity | 0.02 g |
| Minimum readability | 0.001 g (0.01/0.1% selectable) |
| Repeatability1 (standard deviation) |
0.15% (2 g); 0.05% (5 g); 0.02% (10 g) |
| Temperature range setting | 50 to 200⁰C (1⁰C increments) |
| Drying heater | Straight halogen heater |
| Power | 400 W |
| Measurement conditions data memory | 10 |
| Operating temperature/humidity range | 5 to 40⁰C; 85% RH or lower |
| Pan size | Dia. 95 mm |
| Body dimensions W x D x H |
202 x 336 x 157 mm |
| Weight | Approx. 4.2 kg |
| Display | LCD with backlight |
| Input/output terminal | RS-232C (9-pin connector); I/O port; USB port |
- Derived from measurement of a sodium tartrate dehydrate standard.
-
MOC63U MOISTURE BALANCE, 60 G/0.001 G, CSA & UL APPROVED#SZ-321-71500-52
