Aspire, Laboratory Aspirator with single channel flow controller, 115V

ERP
BEN-V0020
Regular Price CA$1,805.00 Special Price CA$1,534.25
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

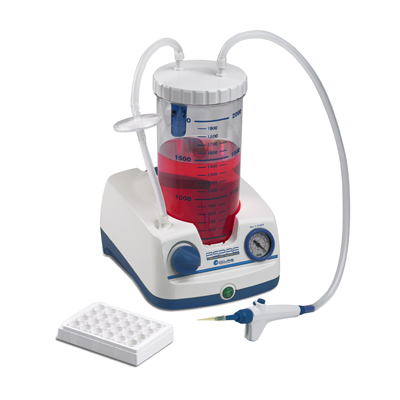

The ASPIRE is an ideal choice for a wide range of laboratory aspirating applications, including removal of media from tissue culture vessels or plates, and supernatants. An ergonomic, hand held controller is included, and holds standard 200 to 300ul disposable pipette tips.

The hand-held controller, and adapters are made of POM (Polyoxymethylene), and fully autoclavable.

The Polycarbonate collection bottle incorporates a reliable Overflow Protection Valve that closes off the tube to the vacuum in the event of a full bottle. In addition, the replaceable in-line filter protects the vacuum pump from contaminants and any moisture that comes through the bottle. Graduations on the collection bottle indicate the amount of fluid collected and when it’s ready to be emptied.

The Handheld Vacuum Controller has an ergonomic design that’s comfortable in the hand during prolonged use. Pressing the button applies the vacuum. The pipette accepts Pasteur pipettes, serological pipettes, and also comes with 2 accessory pipette cones. One cone is designed to accommodate 200/300ul pipette tips, the other has a thin, stainless steel capillary for fine control aspirating.

Additional 1 metre lengths of tubing (V0020-TB) are available to extend the reach of the hand-held controller.

The Aspire comes complete with:

  • Base with internal vacuum pump
  • 2 Liter, polycarbonate collection bottle
  • Antibacterial / hydrophobic filter
  • Silicone tubing
  • Handheld vacuum controller (A)
  • Adapter for 200ul pipette tips (B)
  • Adapter, fine tip stainless steel, 40mm (C)

Available optionally:

  • Extra long, (80mm) fine tip stainless steel (D)
  • 8-channel adapter, fine tip stainless steel (E)
  • 8-channel adapter for 200ul pipette tips (F)

product

Max. Aspiration 14ml / sec.
Max. Flow 15L / min.
Vacuum Range -30 to -750mbar
Noise Level 59.6 db
Vacuum Pump oil free piston
Dimensions 9.5 x 7.9 x 13.5in
Weight 4.8 lbs / 2.2 kg
Electrical 115V, 60 Hz
Warranty 2 years
