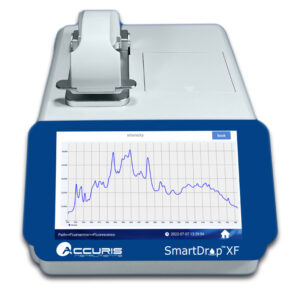

Benchmark Accuris SmartDrop™ XF Nano Spectrophotometer, 115V

logo

ERP
BEN-NS1020

Regular Price CA$26,180.00 Special Price CA$22,253.00
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

This top of the line spectrophotometer can perform not only UV-Vis readings in the range of 200-800nm but also fluorescence readings.

Like the SmartDrop X, the SmartDrop XF features predefined programs for nucleic acids, proteins, and various colorimetric assays. The patented, motorized system gently stretches the sample column and allows for three different path lengths, providing accurate readings of samples from 0.5 to 2.0µl without dilution.

The integrated fluorometer yields more accurate, sensitive and selective quantitation of nucleic acids. The blue light channel (460nm) is useful for detection of dyes such as PicoGreen and RiboGreen as well as GFP and fluorescein. UV, green and red channel models are available upon
request.

  • Full-spectrum absorbance scanning and calculations of 260/280 and 260/230 ratios
  • Long-life Xenon lamp with precision monochromator
  • Auto-ranging path lengths of 0.05mm, 0.2mm and 1.0mm
  • Detect up to 15,000ng/µl of dsDNA without dilution
  • Integrated fluorometer for sensitive quantitation of low concentration nucleic acids
Display 7-inch touch screen
Minimum sample size 0.5µl – 2.0µl
Path length 0.05mm, 0.2mm, 1.0mm
Light source Xenon Flash Lamp
Detector 2048 Element Linear Silicon CCD Array
Wavelength 200 – 800nm (1nm steps)
Absorbance range 0.04 – 300 A (10mm equivalent)
Absorbance precision 0.003 A
Lower limit of detection dsDNA: 2ng/µl ; BSA: 0.1mg/ml
Upper limit of detection dsDNA: 15,000ng/µl; BSA: 360mg/ml
Detection time < 6 seconds
Communication ports USB for data export
Voltage input DC 24V, 2A
Power 25W
Dimensions (WxDxH) 20.8 x 8.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.
Weight 3.6 kg / 7.9 lbs
Cuvette OD600 detection
Absorbance range 0.0 – 4.0 A
Absorbance stability [0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance repeatibility [0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance precision [0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
Fluorescence detection
Excitation/Emission 460 ± 20nm / 525-570nm
Sensitivity dsDNA: 0.5pg/µl
Linearity R² ≥ 0.995
Repeatibility ≤ 1.5%
Stability ≤ 1.5%
