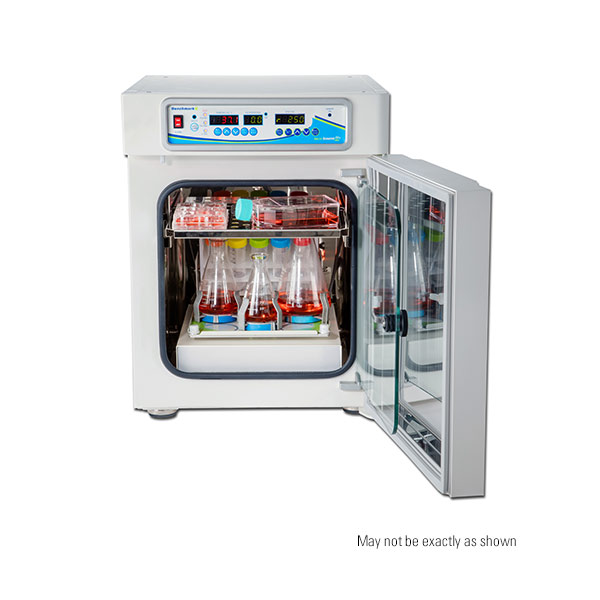

IncuShaker Mini CO2 Shaking Incubator (46L). Temperature range: Ambient +5° to 60°C in increments of 0.1°C; uniformity: ± 0.5°C; accuracy: 0.1°C. CO2 range: 0 to 20% in increments of 0.1%; accuracy: ± 0.1%; Dual Beam IR Sensor. Shaking speed range: 30 to

logo

ERP
BEN-H3501
Regular Price CA$18,115.00 Special Price CA$15,397.75
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Ideal for the culturing of non-adherent cells, Benchmark's Incu-Shaker CO2 Mini combines a precision CO2 incubation chamber with an integral orbital shaker, providing the optimum conditions for suspension cell culture.

With Benchmark'a unique and proprietary heat distribution technology, the incubator provides the highest levels of temperature accuracy with minimal fluctuation (within 0.1°C). The six-side heating system in combination with a low speed internal fan uniformly spreads air throughout the stainless steel chamber (without air exchange from the external environment). For applications requiring solely gravity convection, this internal fan can be disabled, significantly reducing the concern of sample to sample contamination.

A beltless motor drive provides a horizontally circular shaking motion at a consistent 19mm orbit. The included platform (9.5 x 11.5 in.) can be used for low speed shaking of a variety of laboratory vessels, including Erlenmeyer flasks, culture plates and media bottles. For high speed mixing, a patented MAGic Clamp platform is available that allows for magnetic attachment of flask clamps and tube racks.

  • Heat – Shake – CO2
  • Six side heating provides excellent uniformity and recovery
  • Integral MAGic Clamp shaker (Optional: Item No. BEN-H1000-MR), ideal for suspension cell culture
  • Precise monitoring over CO2 with dual beam IR sensor
Temperature Range Ambient +5° to 60°C
Temperature Increments 0.1°C
Temperature Uniformity ± 0.5°C
Temperature Accuracy 0.5°C
Speed Range 30 to 300rpm
Speed Increments 1rpm
Mixing Orbit 19mm (3/4 in.)
CO2 Range 0 to 20%
CO2 Increment 0.1%
CO2 Accuracy ± 0.1%
CO2 Sensor Dual Beam IR
Timer 1 min. to 48 hours / continuous
Platform Dimensions 9.5 x 11.5 in./28 x 41 x 33 cm
Chamber Dimensions 13.2 x 10.25 x 15.4 in. 33.5 x 26 x 39.2 cm
Chamber Volume 46L
Chamber Material Stainless Steel (316)
Exterior Dimensions 16.5 x 18.3 x 21.8 in. / 42 x 46.5 x 55.3 cm
Weight 90 lbs / 40.1 kg
Electrical 120V or 230V 50-60Hz (350W)
