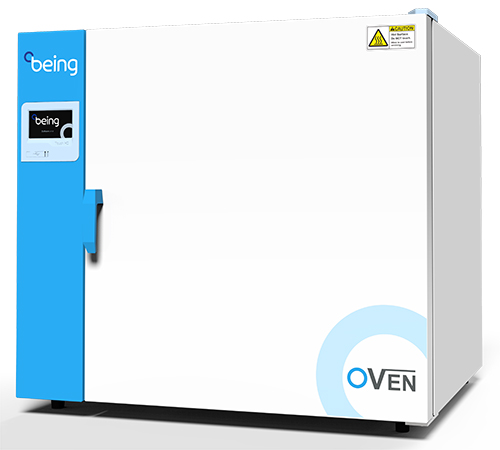

Forced Air Drying Oven, BOF-120T, Internal Volume: 4.2 cuft (121 liters), Stackable, Temp Range: Ambient+10°C to 300°C, Heating Rate to 100°C:40 mins, Max load/shelf: 20kg, 120V 60Hz,Warranty: 2 year.
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
The BOF Forced-air Convection Drying Oven series distributes heat evenly inside the chamber with an integrated fan. This is ideal for drying protocols with very tight temperature requirements.
The 4.3-inch touchscreen controller provides fast, accurate, and uniform heat displacement. Users can preset 7 periods and 9 steps for a total of 63 programs. Temperature, time and heating rate can be set and programmed at the same time.
The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation.
These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.
Features
Performance and Features
- Temperature range: Amb+10°C - 300°C
- P.I.D temperature controller provides accurate and reliable temperature control
- Mechanical convection facilitates hot air circulation
- Adjustable exhaust port/vent
- Extended-life silicone rubber gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed
- NEW colour touchscreen controller
Convenience
- Inner chamber is made from corrosion-resistant mirror stainless steel
- Round curved inner angle is easy to clean
- Anti-skid shelf design - easy to operate by single hand
Safety
- Auto Start feature after power loss/return
- Temperature deviation alarm
- Over-temperature set point and shutdown with alarm
- Independent over-temperature limit controller for added safety
- Over-current alarm and shutdown
Specifications
|
Internal Volume |
4.2 cu ft (121 litres) |
|---|---|
|
Temperature Range |
Ambient +18℉ ~572℉ Ambient +10℃ ~300℃ |
|
Temperature Stability |
±0.5℃ |
|
Heating Rate to 100℃ |
40 mins |
|
Uniformity at 100℃ |
±3.0 |
|
Display Resolution |
0.1 |
|
Maximum # of Shelves |
12 |
|
# of Shelves |
3 |
|
Max. Load per Shelf |
20Kg |
|
Internal Dimension (WxHxD) |
20.5×20.9×17.3 (inch) 520×530×440 (mm) |
|
External Dimension (WxHxD) |
31.9×29.7×27.0 (inch) 810×755×685 (mm) |
|
Net Weight |
83Kg |
|
Timer (hh:mm) |
00:01 – 99:59 |
|
Electrical Requirement |
120V 60Hz |
|
Power Consumption |
2050W |
|
Warranty |
2 years |
|
Certification |
CSA |
