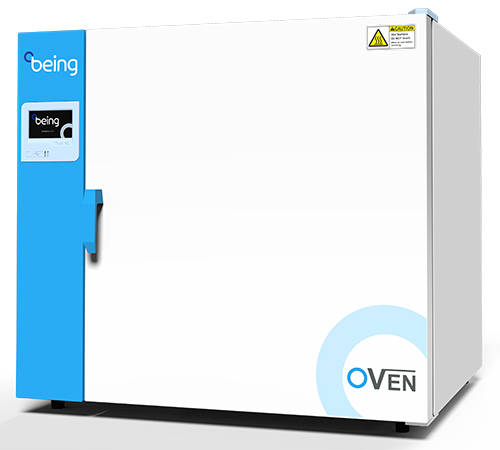

Natural Convection Drying Oven, BON-115T, 120VAC,50/60Hz
The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.
Free Technical Support
In-depth and personal over-the-phone support at no cost.
Quality Parts & Accessories
Mandel uses manufacturer-specified parts for all repairs and maintenance.
Details
The BON Natural Convection Drying Oven series offers low air turbulences for gentle drying and heating. This is ideal for sterilization, powder drying and high temperature storage.
The 4.3-inch touchscreen controller provides fast, accurate, and uniform heat displacement. Users can preset 7 periods and 9 steps for a total of 63 programs. Temperature, time and heating rate can be set and programmed at the same time.
The doors are engineered with airtight sealing and inner chambers are designed with corrosion resistant stainless steel. Safety alarms are installed for – overtemperature, over current protection, and temperature deviation.
These ovens provide excellent temperature stability and reproducibility for all your desired application needs ensuring maximum efficiency, safety, and ease of use.
Features
Temperature Range: Amb +10°C - 300°C
- P.I.D temperature controller provides accurate and reliable temperature control
- Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying and high temperature storage
- Extended-life silicone rubber gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed
Convenience
- Inner chamber is made from corrosion-resistant mirror stainless steel
- Round curved inner angle is easy to clean
- Anti-skid shelf design, easy to operate by single hand
Safety & Peace of Mind
- Auto Start feature after power loss/return
- Temperature deviation alarm
- Over-temperature set point alarm
- Over-current protection
- Independent overtemperature limit controller for added safety
Specifications
|
Internal Volume |
4.1 cu ft (115 litres) |
|---|---|
|
Temperature Range |
Ambient +18℉ - 572℉ |
|
Temperature Stability |
±0.5℃ |
|
Display Resolution |
0.1 |
|
Uniformity at 100℃ |
±3.0 |
|
Heated to 100℃ |
40 mins |
|
Maximum # of Shelves |
10 |
|
# of Shelves |
2 |
|
Max. Load per Shelf |
20Kg |
|
Internal Dimension (WxHxD) |
20.5×19.4×17.7 (inch) |
|
External Dimension (WxHxD) |
31.9×29.7×23.2 (inch) |
|
Net Weight |
74Kg |
|
Timer |
1~5999mins |
|
Electrical Requirement |
120V 60Hz |
|
Power Consumption |
1800W |
|
Heating Rate to 100℃ |
40 mins |
|
Warranty |
2 years |
|
Certification |
CSA |
