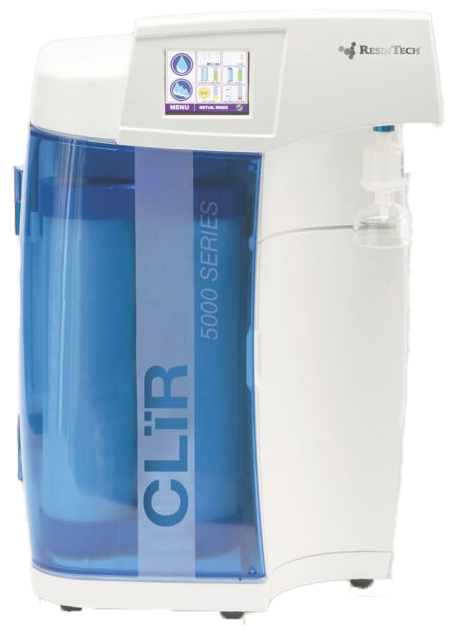

CLïR 5200 Ultrapure Lab Water System (Remote 110v)

logo

ERP
ARI-CLS-5200-R-1
Regular Price CA$19,413.00 Special Price CA$16,501.05
EA

The Largest 100% Canadian Owned and Operated Lab Equipment Distributor and Service Provider.

Free Technical Support

In-depth and personal over-the-phone support at no cost.

Quality Parts & Accessories

Mandel uses manufacturer-specified parts for all repairs and maintenance.

Designed specifically for trace organics and analytic chemistry applications requiring low organics and bacteria, the CLïR 5200 delivers 2.5 LPM of Type I, 18.2 Megohm water quality on demand. The water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals, and ultraviolet light for bacteria sterilization and TOC reduction. As the water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.

The CLïR 5200 uses a dual wave length technology to reduce organics and sterilize bacteria at the same time. Certain applications like HPLC and LC, require ultrapure water with TOC levels less than 5 ppb. The water is typically used in the preparation of mobile phase preparation, creating blanks, and sample dilution. For trace metals analysis, ICP-OES/ICP-MS require the organic and ionic purity for their dilution and dissolution processes.

Cartridges and final filter sold separately.

  • 2.5 lpm of 18MΩ Type 1 reagent water on demand
  • Intuitive, user-friendly touch-screen interface
  • Real time quality monitoring with leak detection
  • Compact design with remote dispense option
  • Quick change, no tools cartridge design
  • Large capacity, low cost consumables cartridges
  • Genuine ResinTech media
  • Made in the USA
Configuration Remote Dispense
System Voltage 120V/60Hz
0.2 Micron Filtration TRUE
UV Oxidation Lamp TRUE
Water Type Type I
Purified Water Resistivity 18.2 MΩ
Max. Output Flow Rate 2.5 lpm (7.6 gpm)
Total Organic Carbons < 5 ppb
Bacteria Removal < 1 CFU / mL
RNase/DNase Removal No
Particulate Removal < 0.2 Micron
Max. Pressure 90 PSIG
Max. Temperature 100°F (30°C)
Dry Weight 42 lbs. (19 kg)
Legacy Part # PHX-CT-R-1
Variation Name Remote Dispense 110v
